Real distributed image processing with Apache Spark

Image processing with Apache Spark

How do you process images efficiently in Apache Spark?

If you read the Databricks documentation you’d be pressed to believe most preprocessing must be done outside of the Apache Spark ecosystem.

For example:

• Model inference with keras teaches you to use plain Python to read the files into memory before creating a pandas dataframe to write the image data out to a parquet file.
• Model inference with pytorch teaches you a slightly different way by using plain Python to get the filepaths and put those paths into a Spark dataframe.

Be efficient

These approaches are not truly distributed, but is there a better way?

In this blog I will show you how to use the build-in image datasource.

Leveraging this data source, Apache Spark will process the images in a truly distributed manner.[1]

Getting started

Setting up the environment

python -m venv /path/to/spark-image-processing
source /path/to/spark-image-processing/bin/activate
pip install pyspark pillow pandas pyarrow tensorflow jupyterlab

Preparing some image data

I chose the imagenette2.tgz mentioned on AWS fast ai imageclas.

From those 13000+ images I randomly selected 75:

find ./imagenette2 -maxdepth 4 -type f |
    sort -R |
    head -75 |
    xargs -I{} cp {} ./data/images/mixed

Reading the image data into a Spark dataframe

Start a pyspark session

pyspark --master "local[2]" --conf spark.executor.memory=4G --conf spark.driver.memory=2G

Imports

from typing import Iterator

from pyspark.sql import SparkSession
from pyspark.sql.functions import col, pandas_udf, PandasUDFType
from pyspark.sql.types import StructType, StructField, StringType, IntegerType, FloatType, ArrayType, BinaryType

from PIL import Image, ImageDraw
from tensorflow.keras.applications.resnet50 import ResNet50

import tensorflow as tf
import numpy as np
import pandas as pd

Read the image folder

images_dir = "./data/images/mixed/"
image_df = spark.read.format("image").load(images_dir).filter("image.nChannels > 2 AND image.height < 1000")
image_df.select("image.origin", "image.height", "image.width", "image.mode", "image.nChannels").show(5, truncate=False)

Visualize one of the images

image_row = 40
spark_single_img = image_df.select("image").collect()[image_row]
(spark_single_img.image.origin, spark_single_img.image.mode, spark_single_img.image.nChannels )

mode = 'RGBA' if (spark_single_img.image.nChannels == 4) else 'RGB'
Image.frombytes(mode=mode, data=bytes(spark_single_img.image.data), size=[spark_single_img.image.width,spark_single_img.image.height]).show()

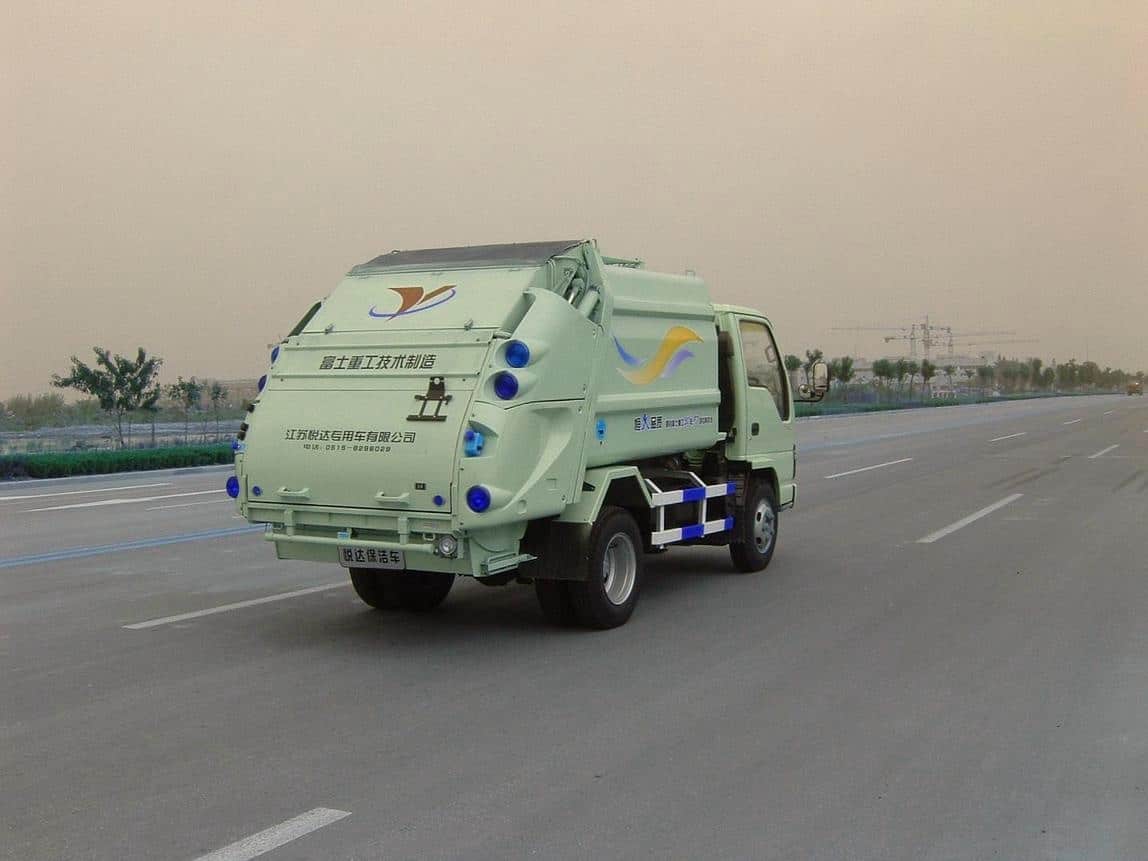

As you can see the image has a bit of a blue touch to it that doesn’t seem right.

Why the extra blue in the artifact? The image datasource uses opencv to read the data. The library expects input as BGRA (Blue, Green, Red, Alpha) instead of RGB (Red, Green, Blue).

How to fix it?

Convert the image layers

def convert_bgr_array_to_rgb_array(img_array):
    B, G, R = img_array.T
    return np.array((R, G, B)).T

img = Image.frombytes(mode=mode, data=bytes(spark_single_img.image.data), size=[spark_single_img.image.width,spark_single_img.image.height])

converted_img_array = convert_bgr_array_to_rgb_array(np.asarray(img))
Image.fromarray(converted_img_array).show()

Better!

Converting all images in Spark

schema = StructType(image_df.select("image.*").schema.fields + [
    StructField("data_as_resized_array", ArrayType(IntegerType()), True),
    StructField("data_as_array", ArrayType(IntegerType()), True)
])

def resize_img(img_data, resize=True):
    mode = 'RGBA' if (img_data.nChannels == 4) else 'RGB'
    img = Image.frombytes(mode=mode, data=img_data.data, size=[img_data.width, img_data.height])
    img = img.convert('RGB') if (mode == 'RGBA') else img
    img = img.resize([224, 224], resample=Image.Resampling.BICUBIC) if (resize) else img
    arr = convert_bgr_array_to_rgb_array(np.asarray(img))
    arr = arr.reshape([224*224*3]) if (resize) else arr.reshape([img_data.width*img_data.height*3])

    return arr

def resize_image_udf(dataframe_batch_iterator: Iterator[pd.DataFrame]) -> Iterator[pd.DataFrame]:
    for dataframe_batch in dataframe_batch_iterator:
        dataframe_batch["data_as_resized_array"] = dataframe_batch.apply(resize_img, args=(True,), axis=1)
        dataframe_batch["data_as_array"] = dataframe_batch.apply(resize_img, args=(False,), axis=1)
        yield dataframe_batch

resized_df = image_df.select("image.*").mapInPandas(resize_image_udf, schema)

We can check if the data contains a converted and a resized image:

row = resized_df.collect()[image_row]

Image.frombytes(mode='RGB', data=bytes(row.data_as_array), size=[row.width,row.height]).show()

Image.frombytes(mode='RGB', data=bytes(row.data_as_resized_array), size=[224,224]).show()

Predicting with the ResNet50 model

Right now we have a resized image, suitable to be used as input for the resnet50 classification model.

To build a predictive model we can use:

def normalize_array(arr):
    return tf.keras.applications.resnet50.preprocess_input(arr.reshape([224,224,3]))

@pandas_udf(ArrayType(FloatType()))
def predict_batch_udf(iterator: Iterator[pd.Series]) -> Iterator[pd.Series]:
    model = ResNet50()
    for input_array in iterator:
        normalized_input = np.stack(input_array.map(normalize_array))
        preds = model.predict(normalized_input)
        yield pd.Series(list(preds))

predicted_df = resized_df.withColumn("predictions", predict_batch_udf("data_as_resized_array"))

To check the prediction of our reference image

prediction_row = predicted_df.collect()[image_row]

tf.keras.applications.resnet50.decode_predictions(
    np.array(prediction_row.predictions).reshape(1,1000), top=5
)

That gives the following output:

[
  [
    (
      "n03417042",
      "garbage_truck",
      0.9919044375419617
    ),
    (
      "n02701002",
      "ambulance",
      0.004018119070678949
    ),
    (
      "n03769881",
      "minibus",
      0.0015384092694148421
    ),
    (
      "n03770679",
      "minivan",
      0.0005491302581503987
    ),
    (
      "n03977966",
      "police_van",
      0.00048319826601073146
    )
  ]
]

The model is confident the image represents a garbage truck — even though the goal of this post is not about creating a precise model but rather to outline how to process data in a distributed manner!

Get the top 5 predictions for every image

decoded_predictions_schema = StructType(predicted_df.schema.fields + [
    StructField("pred_id", ArrayType(StringType()), False),
    StructField("label", ArrayType(StringType()), False),
    StructField("score", ArrayType(FloatType()), False)
])

def top5_predictions(preds):
    return tf.keras.applications.resnet50.decode_predictions(
        np.array(preds).reshape(1,1000), top=5
    )

def top5predictions_batch_udf(iterator: Iterator[pd.DataFrame]) -> Iterator[pd.DataFrame]:
    for dataframe_batch in iterator:
        yield pd.merge(
            dataframe_batch,
            right=pd.concat([
                pd.DataFrame(top5, columns=["pred_id", "label", "score"]).aggregate(lambda x: [x.tolist()], axis=0) for [top5] in dataframe_batch.predictions.map(top5_predictions)
                ]).reset_index(drop=True),
            left_index=True,
            right_index=True
        )

top5_predictions_df = predicted_df.mapInPandas(top5predictions_batch_udf, decoded_predictions_schema)

We check the results on our reference image

top5_prediction = top5_predictions_df.collect()[image_row]
top5_prediction.label[0]  # gives garbage_truck

To visualize it we can add the label to the images

def show_image_with_label(image, label):
    draw = ImageDraw.Draw(image)
    draw.text((10, 10), label, fill="red")
    image.show()

show_image_with_label(Image.frombytes(mode='RGB', data=bytes(top5_prediction.data_as_array), size=[top5_prediction.width,top5_prediction.height]), top5_prediction.label[0])

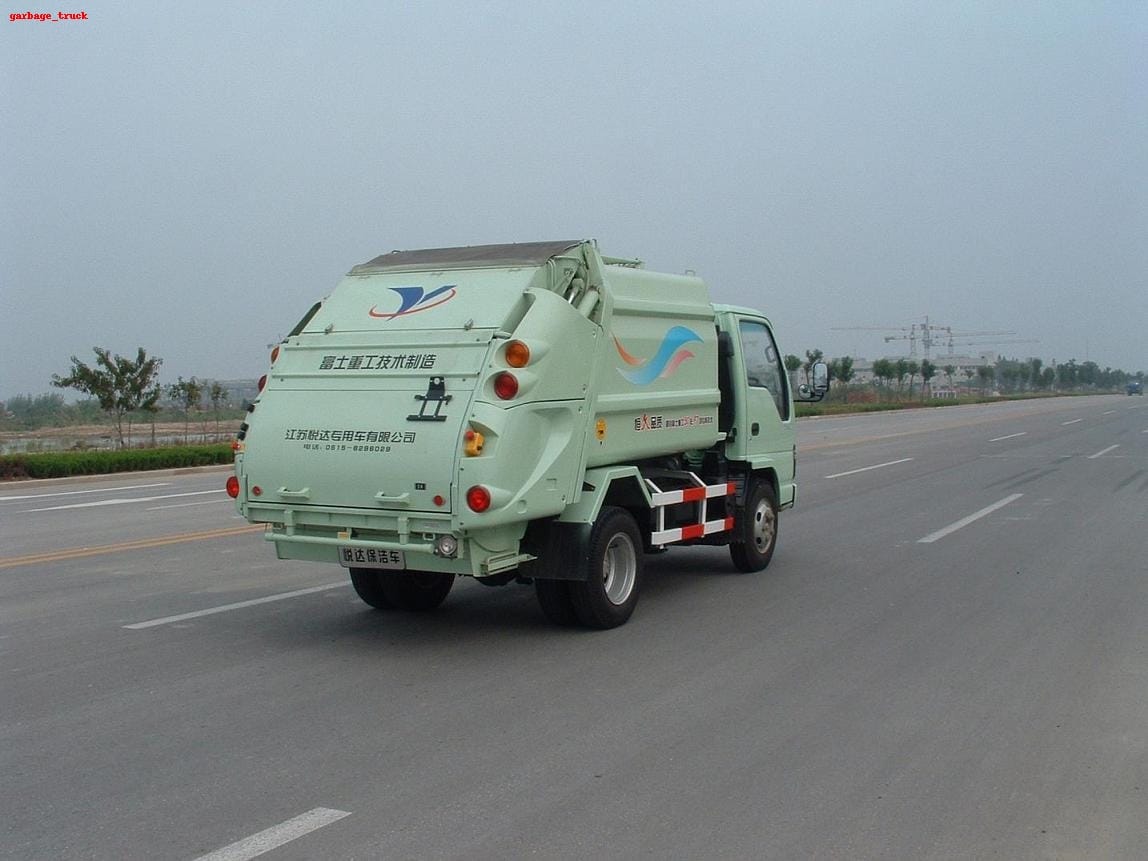

Here is our image with the predicted label:

.

We can show them all with:

for row in top5_predictions_df.collect():
    show_image_with_label(Image.frombytes(mode='RGB', data=bytes(row.data_as_resized_array), size=[224,224]), row.label[0])

All the commands can be copy/pasted into your spark shell. For easier access I created a notebook with the same code to experiment further with.

That’s it for today! Remember;

• Want to work as an engineer tackling similar problems, at the intersection of data science and distributed systems? We’re hiring
• If you’re looking for a team to help you kickstart your efforts, we got some of the best minds out there. Get in touch!!

[1]: The official image data source documentation states that there are some limitations of using this datasource type so be aware of that.
