Integrating SonarCloud with Azure DevOps

03 Aug, 2023
Xebia Background Header Wave

I recently had a conversation with a customer who is working with Azure DevOps and wants to implement SonarCloud. My colleague  had an article about that 4 years ago, but tools continue to evolve so here’s an update on that.

SonarCloud did an amazing job on guiding you through setup on their side (see the docs). However, there is a gap in what you need to do on the Azure DevOps side. My goal is to fill this gap.


I asume that you already have set up an organization and your project in SonarCloud. If not, do so and keep the required Azure DevOps PAT (Personal Access Token) with the Code (read and write) permissions for later usage. Fine, now we will enable each tool to interact with the other.

Enable SonarCloud for Pull Request Analysis with Azure DevOps

First enable SonarCloud for interaction with Azure DevOps. This can be set up in the Administration Tab.

sonar cloud general settings markers

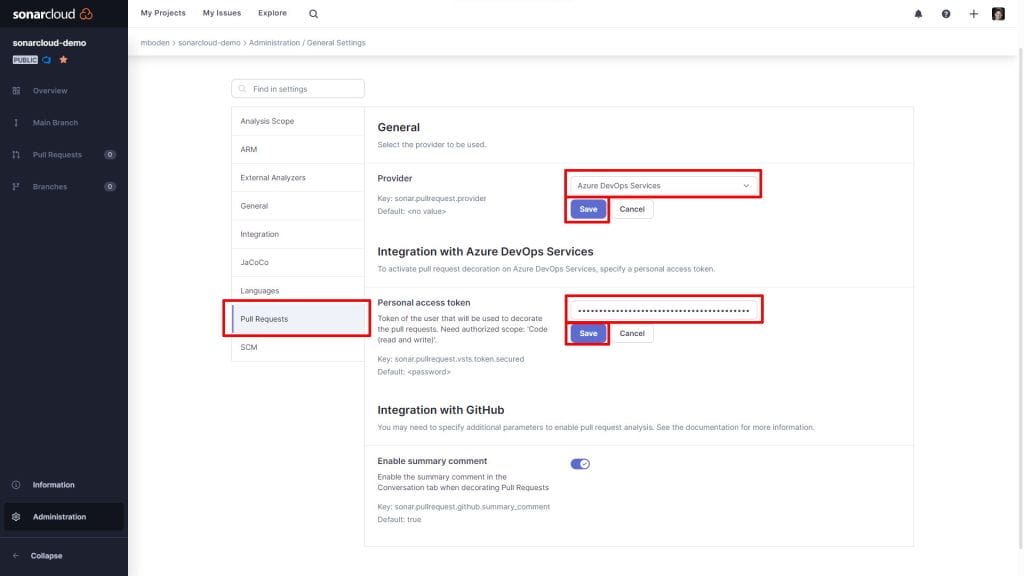

In the Pull Request Menu select the Provider Azure DevOps Service and enter an Azure DevOps Personal Access token with Code (read and write) permissions (I used the same as for importing the organization).

Do not forget to click on both save buttons!!!

sonar cloud general settings pull request markers

Trigger SonarCloud Analysis from Azure DevOps Pipelines

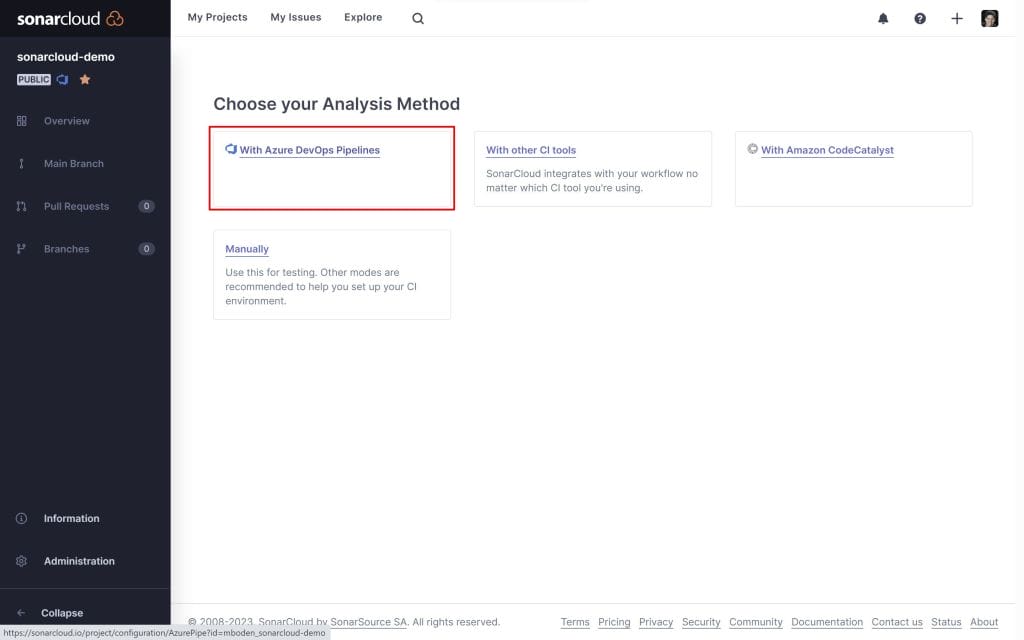

Afterwards set up Azure DevOps to interact with SonarCloud. Go back to the project start page and choose With Azure DevOps Pipeline as your analysis method.

sonar cloud setup pipeline markers

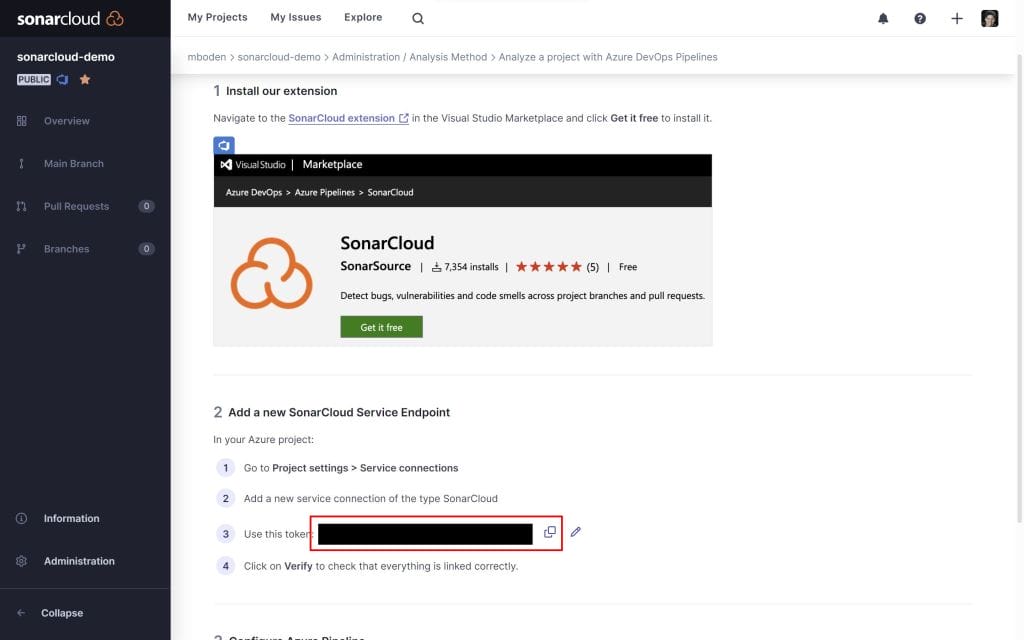

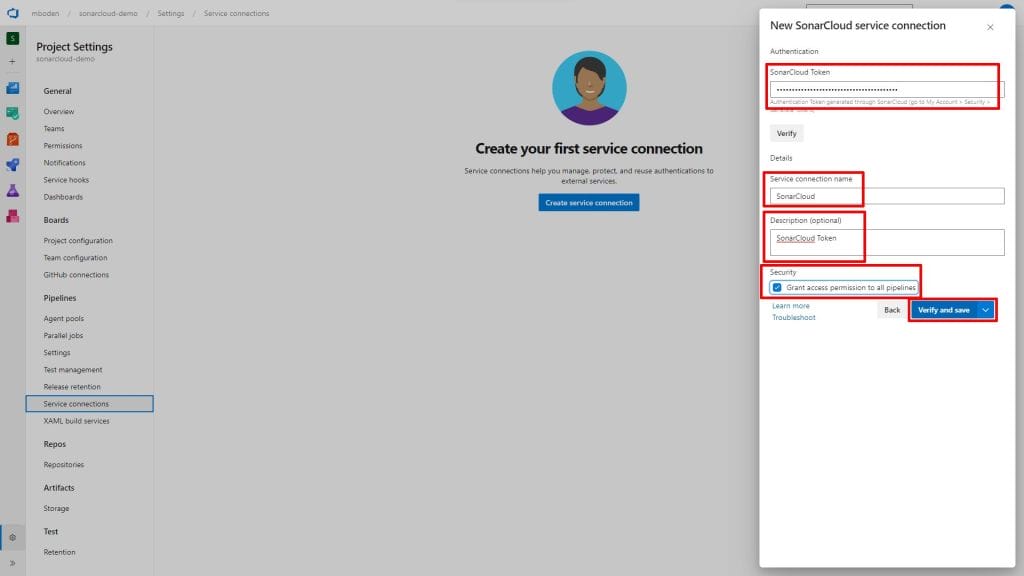

This guides you through installing the necessary extension in your AzureDevOps organization and gives you a token, that you can use to create a service connection to SonarCloud in your Azure DevOps project.

sonar cloud setup pipeline markers
sonar cloud setup pipeline markers

As I want to analyze a JavaScript project, I’ll choose the option other Other to configure my pipeline. This gives me detailed instructions on how to configure the SonarCloudPrepare task.

sonar cloud setup pipeline markers

The pipeline for my JS project looks like this:

# Node.js
# Build a general Node.js project with npm.
# Add steps that analyze code, save build artifacts, deploy, and more:

    - 'main'

  vmImage: ubuntu-latest

- checkout: self
  fetchDepth: 0

- task: NodeTool@0
    versionSpec: '16.x'
  displayName: 'Install Node.js'

- task: SonarCloudPrepare@1
    SonarCloud: 'SonarCloud' # name of your SonarCloud service connection
    organization: 'mboden' # name of the SonarCloud organization as given above
    scannerMode: 'CLI'
    projectKey: 'mboden_sonarcloud-demo' # SonarCloud project key as given above
    projectName: 'sonarcloud-demo' # SonarCloud project name as given above
  displayName: 'SonarCloud Configure'

- script: |
    npm install
  displayName: 'Install Dependencies'

- script: |
    npm run tslint
  displayName: 'Lint'

- script: |
    npm run build
  displayName: 'Build'

- script: |
    npm run test
  displayName: 'Test'

- task: SonarCloudAnalyze@1
    jdkversion: 'JAVA_HOME_11_X64'
  displayName: 'SonarCloud Analyze'

- task: SonarCloudPublish@1
    pollingTimeoutSec: '300'
  displayName: 'SonarCloud Publish'

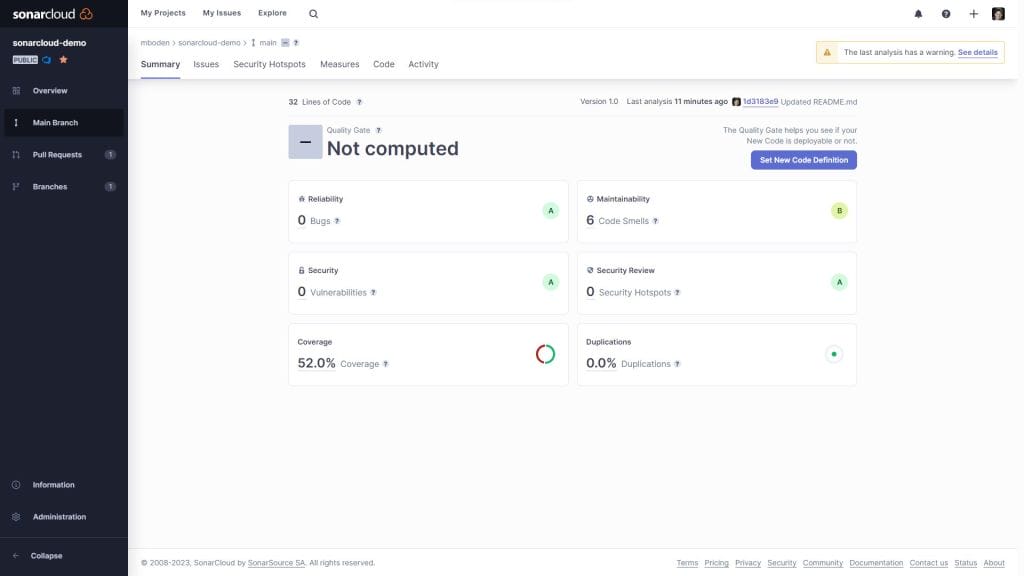

Setting up this pipeline in Azure DevOps and running it once will already show some results for the main branch in SonarCloud.

sonar cloud main branch

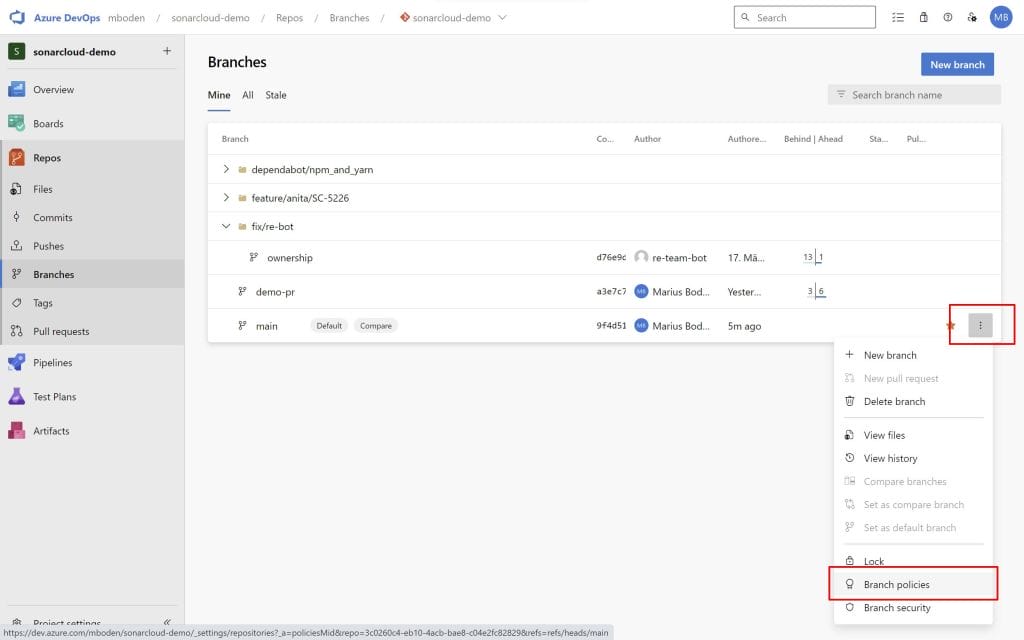

Now I want to analyze a topic branch and make use of the pull request quality gates of SonarCloud. This requires me to set up some branch policies for the main branch.

azure devops branch policies markers

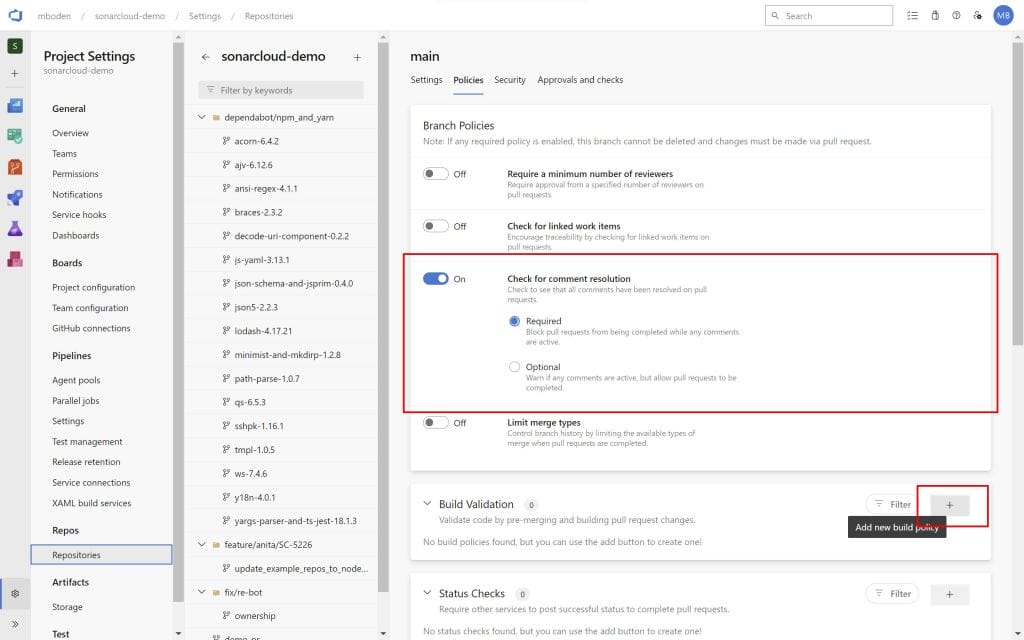

Enabling Check for comment resolution will require any reviewer of the pull request to resolve the comments made by SonarCloud within the pull request. To enable pull request validation in SonarCloud a build validation for the pipeline has to be set up.

azure devops branch policies add markers

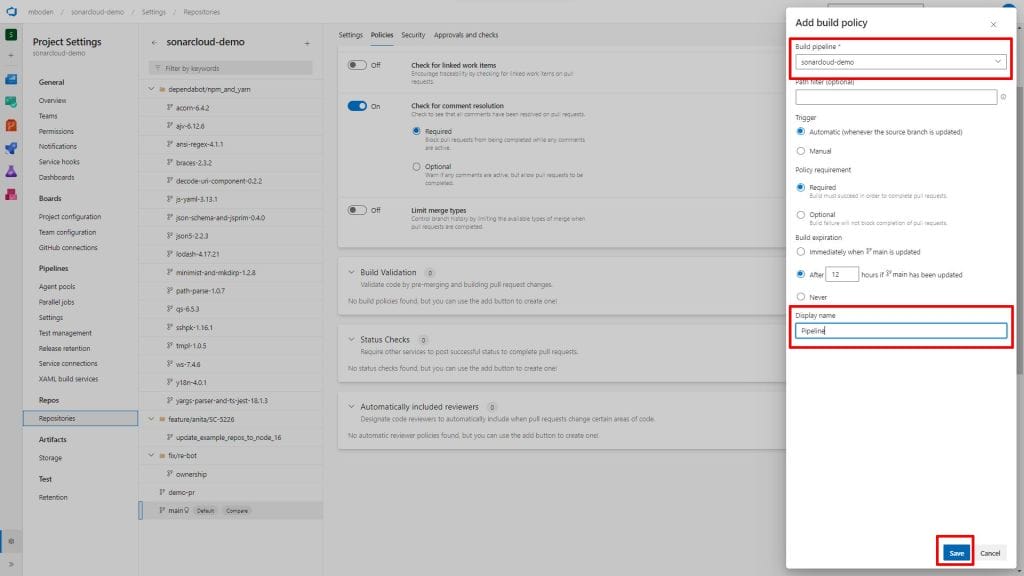

I select the sonarcloud-demo pipeline I created earlier, leave all settings to default and give it a nice display name.

azure devops build policy markers

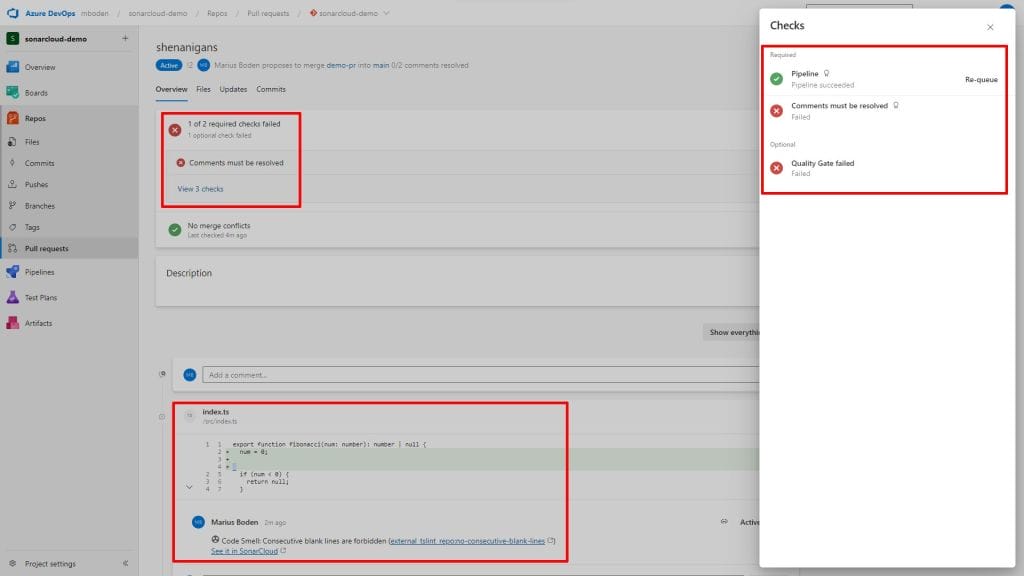

Now everything is set up to create a branch, check in some code that does not pass the validation and push it to the repo. Afterwards I will create a pull request to see the quality gates failed. As we can see, SonarCloud did all the checks and not only we can see the quality gates are not passed but sonarcloud also created comments with necessary changes.

azure devops pull request markers

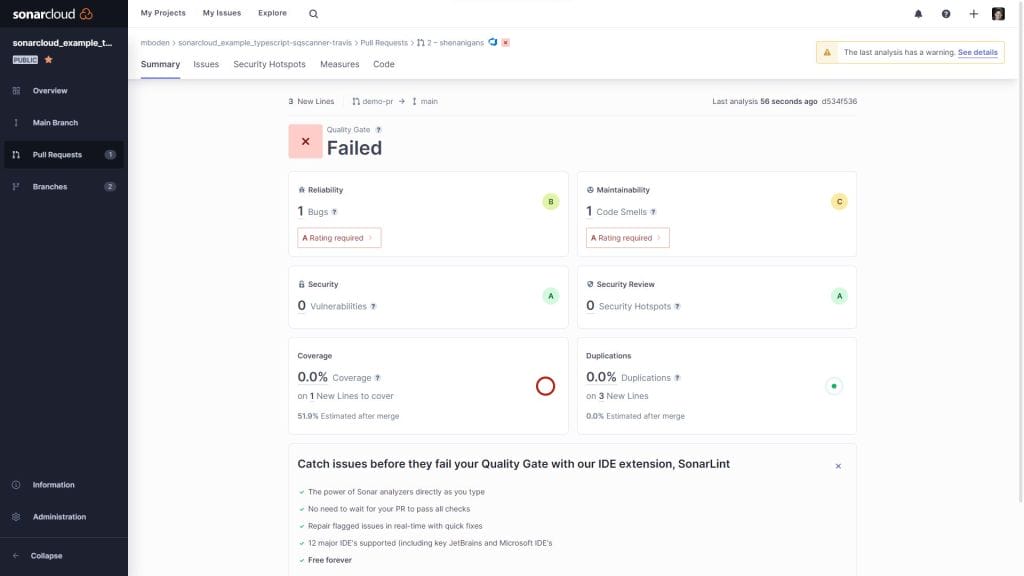

A click on Quality Gate Failed directly redirects to SonarCloud.

sonar cloud result

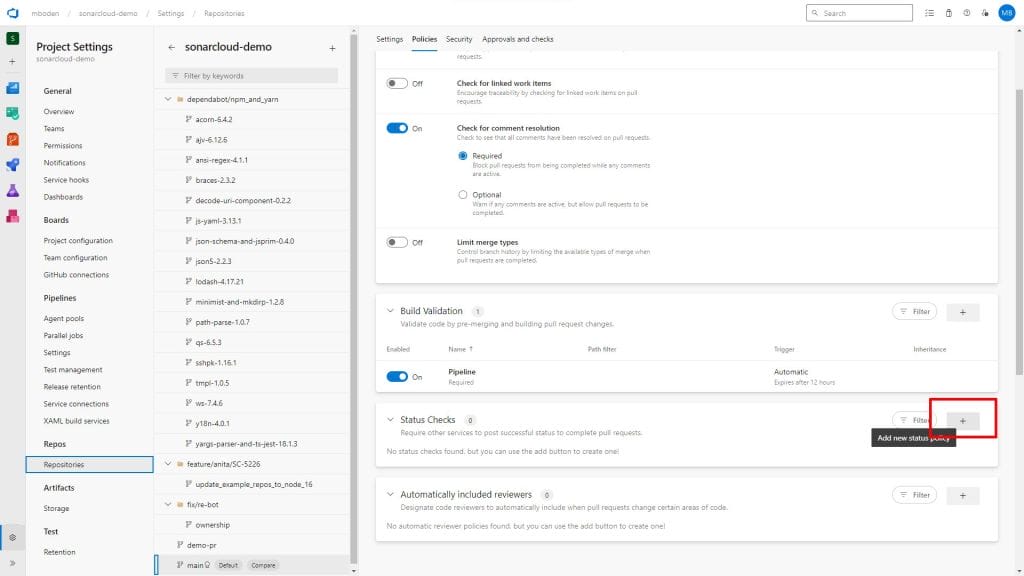

After running this once on a pull request, azure devops got the first analysis results and you can setup status checks. This will prevent the pull request from being merged as long as the quality gates are failed. To do so switch again to the the branch policy settings for your default branch.

azure devops branch policies add status check markers

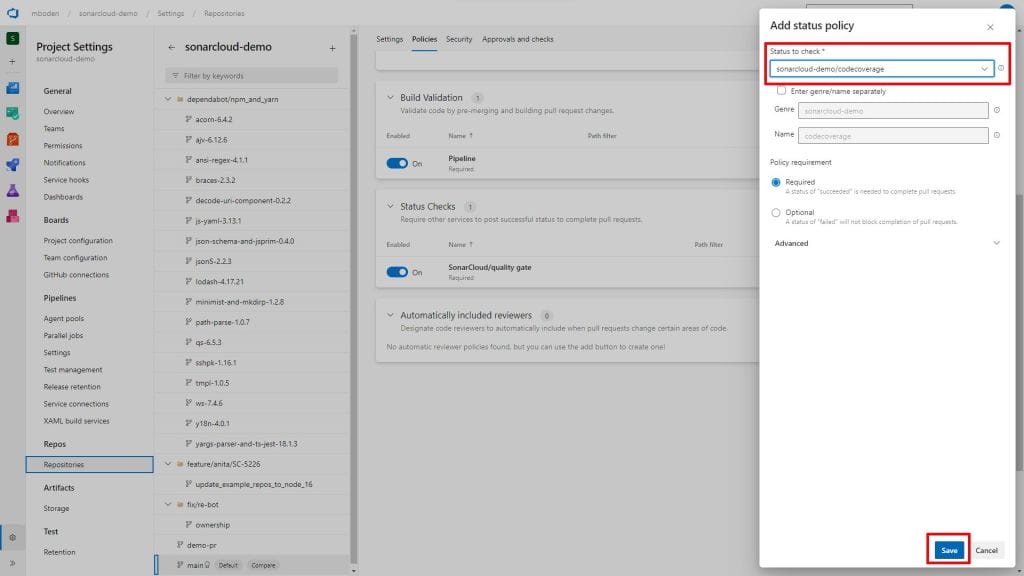

Select the status check and either give custom Genre and Name or stay with the defaults. Click save.

Note: The pipeline has to run at least once for a pull request, before the corresponding status checks will appear in the Dropdown list.

azure devops status check markers

That’s it! We successfully integrated SonarCloud code quality checks with Azure DevOps pipelines and pull requests and prevent pull request from being merged before the quality gates are passed and detected issues are resolved.


Sonarcloud Project: Sonarcloud AzurePipe Project

Azure DevOps Project: Azure DevOps Sonarcloud Demo Project

Azure DevOps Pull Request: Azure DevOps Pull Request 2
